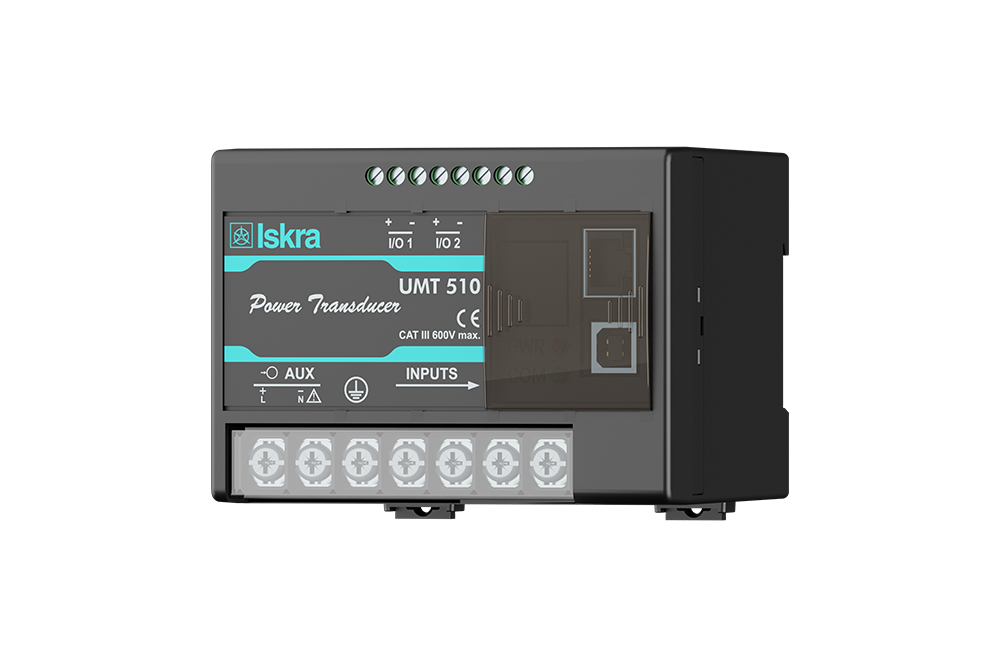

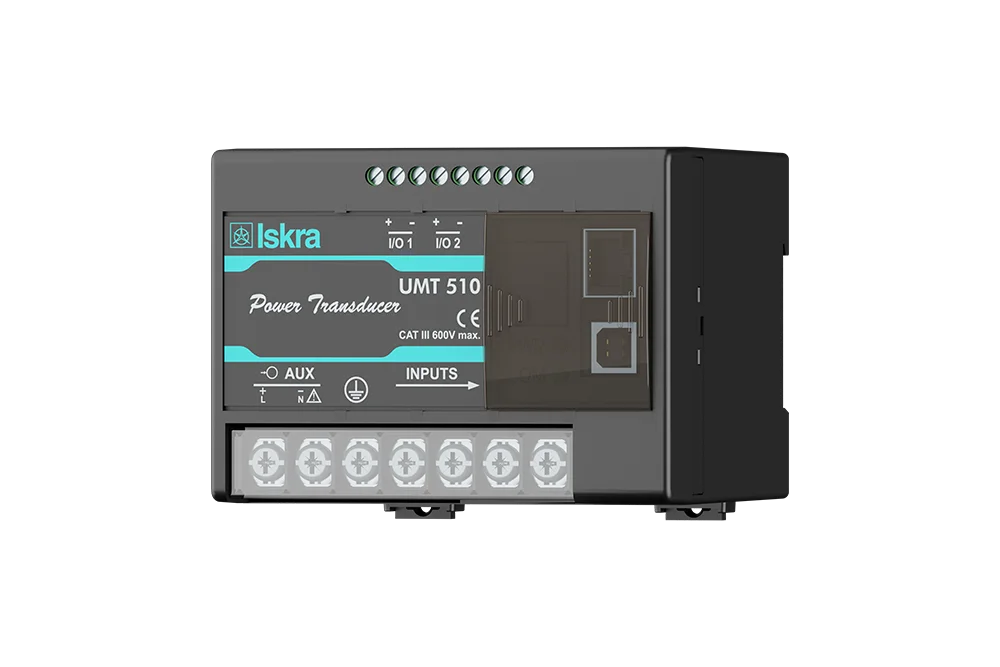

Merilni pretvorniki MT/UMT 51x
Merilni pretvorniki MT 51x so namenjeni za merjenje in nadzor enofaznega električnega omrežja. Tokovni in napetostni vhodi so z uporovno verigo oziroma s tokovnim transformatorjem galvansko ločeni od sistema. Na principu hitrega vzorčenja napetostnih in tokovnih signalov merilnik meri efektivno (RMS) vrednost. Vgrajeni mikroprocesor iz merjenih signalov izračuna merjene veličine (napetost, tok, frekvenca, energija, moč, faktor moči, fazni koti THD itd.).
- Meritve trenutnih vrednosti vseh enofaznih veličin: U, I, P, Q, S, f, φ, energija, THDU, THDI, MD
- Razred točnosti 0,2
- 16 nastavljivih alarmov
- Široko nazivno frekvenčno območje od 16 do 400 Hz
- Komunikacijski vmesnik RS 232/RS 485 do 115.200 bit/s ali USB-komunikacija ali hkrati eternet in USB-komunikacija
- Komunikacijski protokol MODBUS
- Največ 2 vhoda ali izhoda (analogni izhodi, digitalni vhodi, alarmski, digitalni, impulzni izhodi)
- Univerzalno napajanje (dve napetostni območji)
- Avtomatsko območje nazivnega toka in nazivne napetosti (maks. 12,5 A in 600 VL-N)
- Namestitev na DIN-letev
- Uporabniško prijazna PC-programska oprema MiQen
