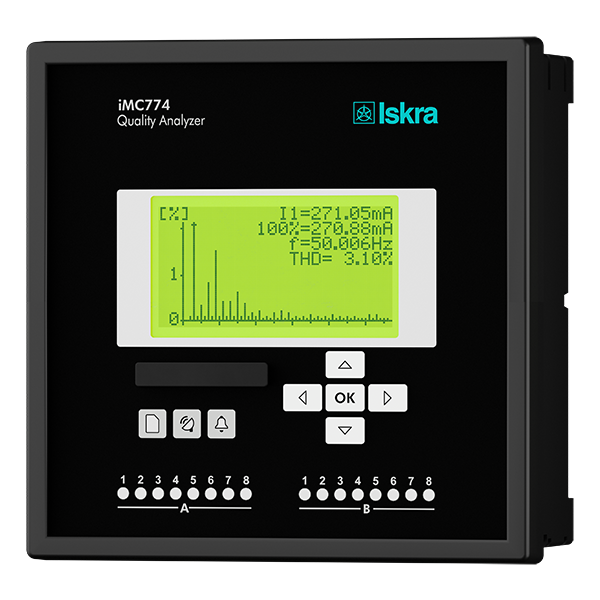

Merilnik kakovosti električne energije Iskra iMC774

Evaluation of the electricity supply quality in compliance with EN 50160 with automatic report generation.
Measurements of instantaneous values of more than 140 quantities including harmonics, flicker, power line signalling voltage, unbalance, etc..
Class A (0.1%) accuracy in compliance with EN61000-4-30.
Four quadrant energy measurement with class 0.2S for active energy, 8 programmable counters, up to four tariffs, tariff clock …
Automatic range selection of 4 current and 4 voltage channels (max. 12.5 A and 1000 VRMS) with 32 kHz sampling rate.
Recording all measured parameters including all voltage and current harmonics up to 65th, 32 adjustable alarms, anomalies and quality reports in the internal memory.
Measurements of 40 minimal and maximal values in different time intervals (from 1 to 256 periods).
Frequency range from 16 Hz to 400 Hz.
Up to three independent communication ports (RS 232/485 up to 115,200 bit/s, Ethernet and USB 2.0).
MODBUS, DNP3 and MQTT communication protocols.
Support for GPS, IRIG-B (modulated and digital) and NTP real time synchronisation.
Up to 20 inputs and outputs (analogue inputs/outputs, digital inputs/outputs, alarm/watchdog outputs, pulse input/outputs, tariff inputs).
Multilingual support.
Universal power supply (two voltage ranges).
144 mm square panel mounting.
User-friendly setting and evaluation software, MiQen.
